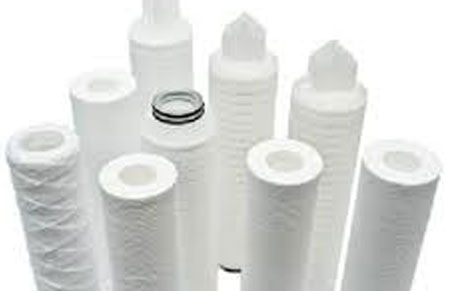

Filters Cartridges
Wound Cartridge
Our wound cartridge filters reject particles from as low as 0.5 micron to 150 micron plus they are available in lengths ranging from 3” to 40” or longer on special order. We offer a standard nominal 1” inside diameter and optional inside diameters of 7/8” , 1 3/8” and 30 mm. Our outside diameter is 2 ½ standard with optional outside diameters ranging from 2” to 4 ½”. Thus you can tailor your filtration system to your specific needs and economics whether it be for single pass or recirculation filtration.
Features:
- True depth filtration
- Longer service life
- Various core and wind
- Material combinations
- High solids holding capacity chemical and temperature
- Compatibility
- Lengths and diameters
- Standard and customize sizes continuous wind process
Melt Brown Filters
Cartridges available in 1 to 50 micron ratings, 2.5 inch and 4.5 inch outside widths and 4 to 50 inch length and various end cap configurations for a broad array of applications.
Pleated Filters
Standard pleated cartridge filters, provide efficient solids removal in liquid streams. Each cartridge has a pleated fixed pore media which maximizes effective surface area while preventing particle unloading and fiber migration.
Carbon Filters
Carbon Cartridges are one-step carbon and filtration treatment. These cartridges eliminates the problems associated with loose carbon treatment and the need for a separate filtration system. The standard cartridges measure 23/4” OD with lengths varying from 4” to 40” with flow rates up to 2 ½ gpm. These cartridges are designed to be used in either single or multi- tubed vessels.
Features:
- Organic impurity removal
- Non contaminating
- Choice of packed granular or impregnated powder carbon cartridges
- High grade activated carbon
- Standard filter cartridge replacement.
Liquid Filter Cartridges
For high purity water and critical process solutions. High efficiency and absolute filtration ratings. Wide variety of filtration media, full range of end cap configurations, fits most standard filter housings.
Ideal for Pre/Post and DI Water systems, bottled water plants, beverage processing and ice making , food service applications , vending equipment and point-of- use filtration.
More detailed information on Filter Cartridges is available upon request.
